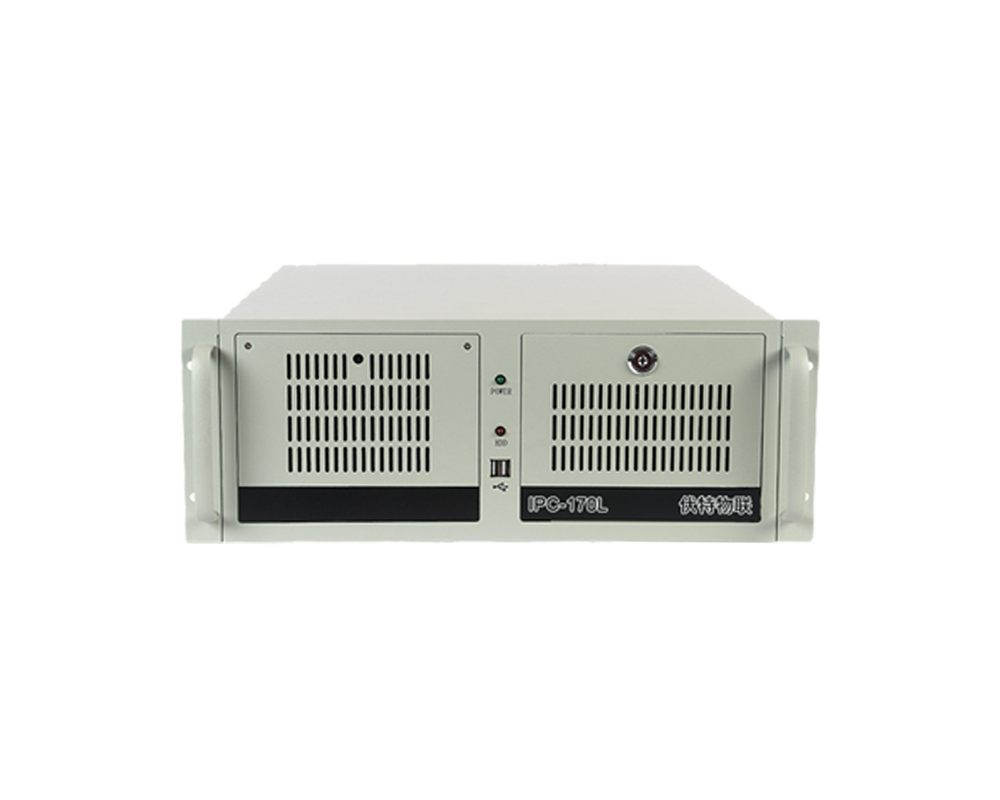

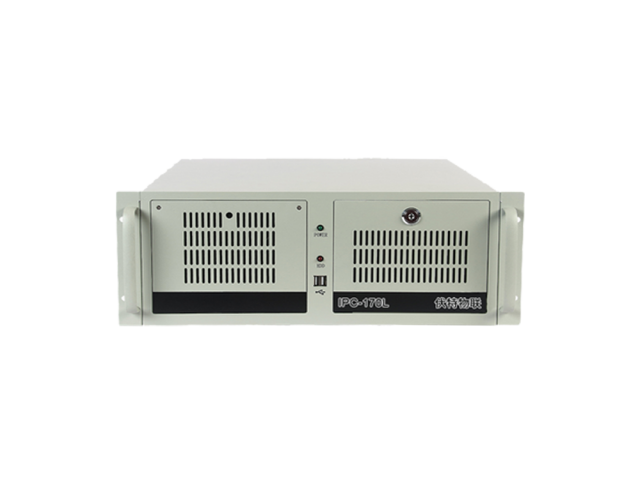

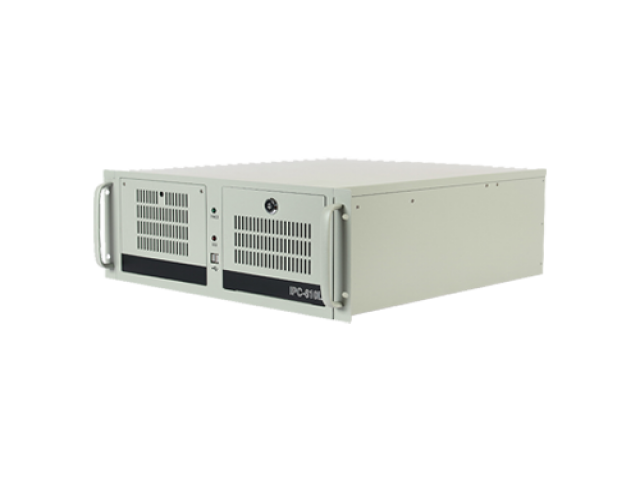

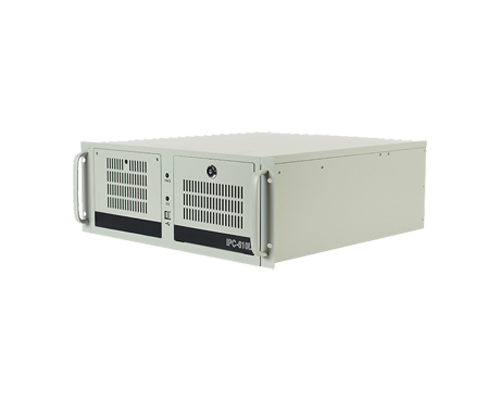

IBM170 server complete machine

Home / Products / Industrial PC PCBA /

IBM170 server complete machine

● Using Intel 6/7/8/9 generation Core I3/I5/I7 processor, Q170 chipset

● 6*COM, 14*USB, 2*Intel Gigabit Ethernet port

● 1*VGA, 1*HDMI, 1*DVI, support three-screen display

● 2*PCIe x16, 3*PCIe x4, 2*PCI

● 1*M.2 PCIe x4/SSD, support vPro, AMT, RAID, TPM2.0

● Overall size: 482*450*178mm

WhatsApp View More Details

SMT ASSEMBLY CAPABILITY OF NEWEI

NEWEI offers high-quality and highly reliable PCB assembly service. Our PCB assembly factory has 8 fully automatic high-speed surface mount production lines and uses the most advanced SMT PCB assembly equipment. Including automatic board loading machine, automatic solder paste printing machine, solder paste thickness detector (SPI, Solder Paste Inspection), multi-temperature zone reflow soldering machine, optical inspection equipment (Automatic Optical Inspection), X-ray inspection machine, baking machine, and PCB stencil cleaning machine, etc.

Printed Circuit Boards (PCBs)have changed the concept of soldering components with wire and creating a complicated and unreliable circuit. PCBs are very compact and offer reliable performance for a very long time. They take up very little space and deliver the expected results.

Nowadays, PCBs are used in almost every industry. Every product that requires some components and their interconnection uses a PCB. PCBs have gone through many changes in the past few decades. There have been many advancements, improvements, and new technologies. One of the leading PCB technologies is surface mount technology. It has supreme importance because it has further reduced the size of PCBs. The components used in the surface mount technology are minimal; the smallest SMD (surface mount device)has a dimension of 0.6mm x 0.30mm. SMT technology has significantly impacted the PCB industry and is widely used nowadays.

Technical Capabilities

Model	IBM 170 machine

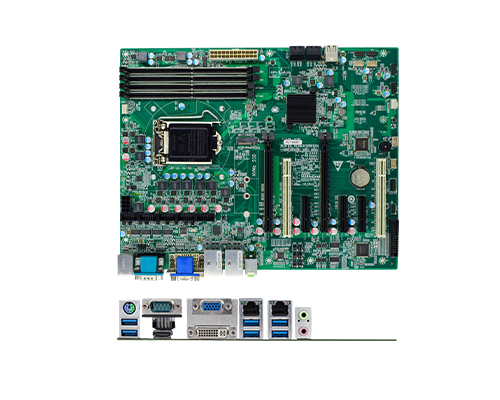

Standard parameters	CPU	Supports Intel LGA1151 6th/7th/8th/9th generation celeron/Pentium/core i3/i5/i7/i9 series processors
Chipset	Intel Q170 chipset/ optional C236 supports E3 V5&V6
memory	It supports 4 DDR4 memory 2133/2400 frequency, and a single 16G memory supports up to 64GB
Graphics	1VGA,1HDMI,1*DVI
network card	2 个 Intel GbE , LAN1: Intel I219LM, LAN2: Intel I211AT
storage	4 SATA 3.0 supports SATA RAID 0/1/5/10 1 x M.2 (2242/2280) socket supports high-speed, low-latency NVMe SSDs (PCIe x4) or SATA SSDs
Expansion bus	2 PCIe x16 (x8 signals), 2 PCIe x4, 1 PCIe x4 (x1 signal), 2 PCI (32bit)
I/O parameters	Switch panel interface	Lockable security door
Rear panel interface	1PS/2，6USB3.0, 6COM，1VGA, 1HDMI, 2LAN,1* Mic-in，1*Line-Out
Power supply parameters	Power input	Single-channel FSP power supply 250W-1200W
Chassis parameters	Chassis parameters	Color: Black/Industrial Gray Material: Aluminum alloy Heat dissipation: Fan heat dissipation
Parameters of the whole machine	Machine size: 482450178mm structure: 4U rack-mounted server
Packaging parameters	Carton size: 611549315mm
Temperature and humidity	Operating temperature	0°C~55°C (32°F~131°F)
Operating humidity	10%-95% @40°C non-condensing
Store humidity	-40°C~55°C (-40°F~176°F)
operating system	Support system	Windows 10, Linux

Download Details
