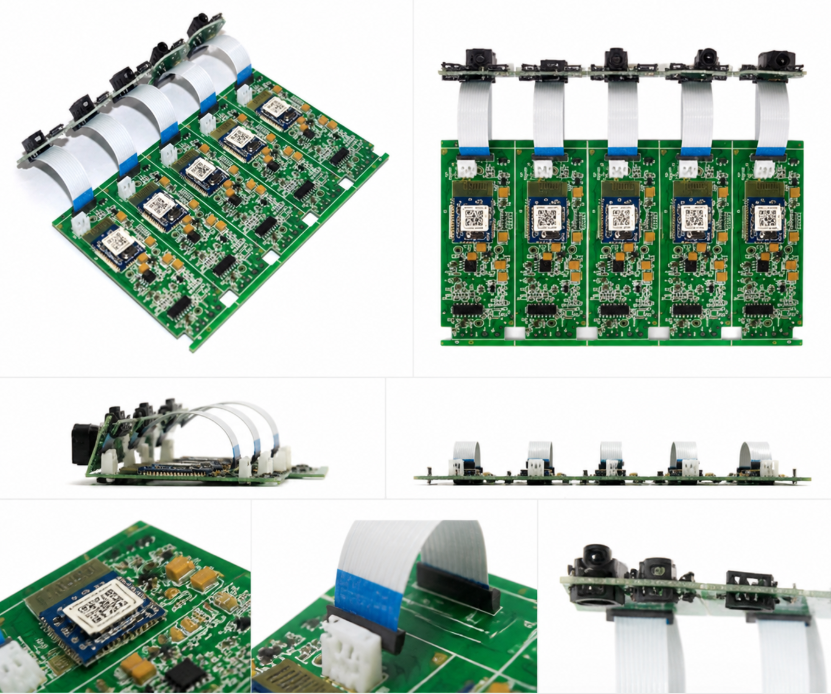

Bluetooth headset PCBA board

The Bluetooth PCBA board is based on the latest Bluetooth technology to achieve data transmission and communication between electronic devices, thereby controlling the relevant functions of the device. NEWEI has rich experience in the design and manufacture of Bluetooth PCBA boards, and has long provided one-stop manufacturing solutions for small and medium-sized customers in the United States, the United Kingdom, Canada, France, etc.

WhatsApp View More Details

SMT ASSEMBLY CAPABILITY OF NEWEI

NEWEI offers high-quality and highly reliable PCB assembly service. Our PCB assembly factory has 8 fully automatic high-speed surface mount production lines and uses the most advanced SMT PCB assembly equipment. Including automatic board loading machine, automatic solder paste printing machine, solder paste thickness detector (SPI, Solder Paste Inspection), multi-temperature zone reflow soldering machine, optical inspection equipment (Automatic Optical Inspection), X-ray inspection machine, baking machine, and PCB stencil cleaning machine, etc.

Printed Circuit Boards (PCBs)have changed the concept of soldering components with wire and creating a complicated and unreliable circuit. PCBs are very compact and offer reliable performance for a very long time. They take up very little space and deliver the expected results.

Nowadays, PCBs are used in almost every industry. Every product that requires some components and their interconnection uses a PCB. PCBs have gone through many changes in the past few decades. There have been many advancements, improvements, and new technologies. One of the leading PCB technologies is surface mount technology. It has supreme importance because it has further reduced the size of PCBs. The components used in the surface mount technology are minimal; the smallest SMD (surface mount device)has a dimension of 0.6mm x 0.30mm. SMT technology has significantly impacted the PCB industry and is widely used nowadays.

Technical Capabilities

Taking Bluetooth headset as an example, the Bluetooth PCBA board needs to realize the following functional parameters:

Impedance: The abbreviation of the AC impedance of the headset. Headphones with different impedances are used in different occasions, and low-impedance headphones are easy to drive. Desktop computers or power amplifiers, VCDs, DVDs, TVs, etc. generally use high-impedance headphones, while portable MDs and MP3 players, mobile phones, etc. can use general low impedance.

Sensitivity: That is, the sensitivity level, above 90dB/mW

Frequency response: The sensitivity in the Bluetooth headset PCBA is different values obtained at different frequencies, and the unevenness is between ±10dB and ±3dB

Distortion: The total harmonic distortion THD is less than or equal to 1% at the maximum power handling

Download Details

Tags: PCBA_board /Bluetooth_headset /

If you are interested in our products, please contact us.
